UGT Compact Weather Station with mast or tripod
UGT Compact Weather Station with mast or tripod
Advantages at a glance
- Compact design
- Transportable, low weight
- Perfect for accompanying measurements, e.g. for bachelor and master theses
- Coordinated system
- Favorable price
- Preconfigured for optional online data retrieval; access secured
UGT Compact Weather Station with mast or tripod
The UGT Compact Weather Station is a cost-effective alternative to the standard version and is available with either a fixed mast or a mobile tripod. Its compact design and low weight make it easy to transport. The station is equipped with a UGT data logger and a mobile network router. Power is supplied by an integrated solar panel with a backup battery.
The compact weather station is preconfigured for use with the data management system provided by our partner, SVADSS. Access to SVADSS's password-protected online service is available as an option. Through the online service, measurement data from the integrated data logger can be accessed online, visualized, and downloaded as a CSV file.
The compact weather station consists of the following sensors:
- Wind speed
- Wind direction
- Air humidity
- Air temperature
- Global radiation
- Rain gauge
- Optional: soil moisture and temperature
- Additional customizations are available upon request
Variants
- Mast mounting: Compact design with a separate precipitation mast for permanent installation for long-term monitoring.
-

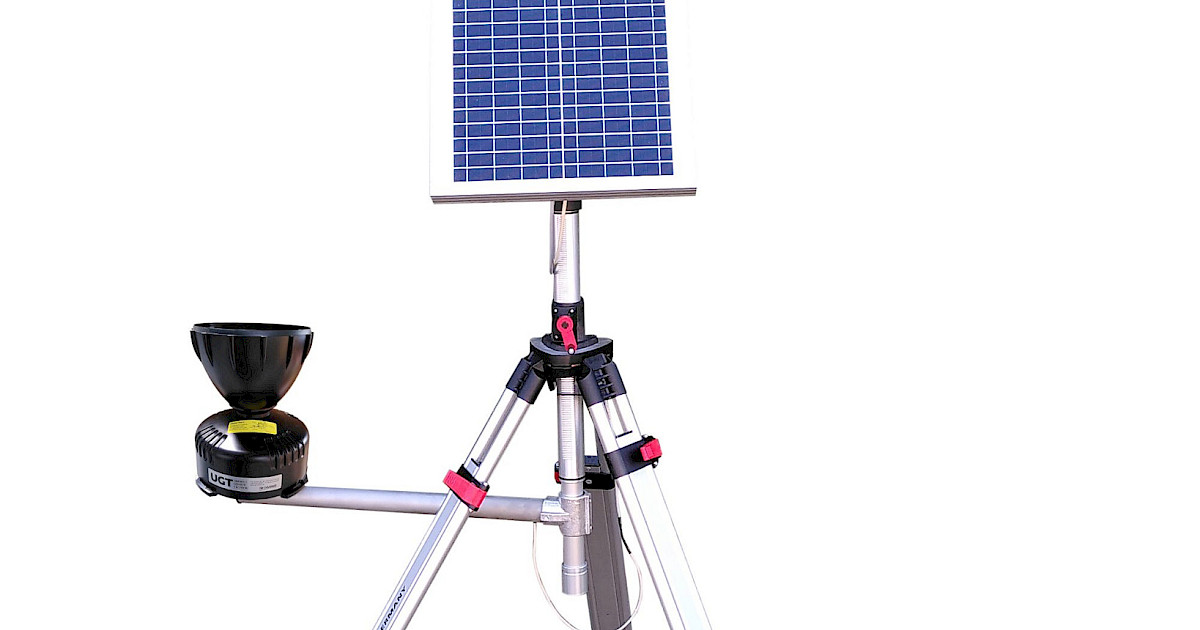

Tripod with Extension Arm: The weather station is mounted on a tripod and features an extension arm with a precipitation gauge attached. The backup battery is integrated into the control cabinet. This design offers a compact system solution with all components in a single unit. It is ideal for flexible measurement periods and quick relocation.
-
Tripod with Separate Rain Gauge Mast: The weather station is set up on a tripod, while the rain gauge is mounted on a separate mast. This separate arrangement allows for flexible positioning of the rain gauge. The backup battery is housed in a separate battery box, allowing for the use of a smaller and lighter control cabinet. Ideal for flexible measurement periods and changing locations.
|
Parameter |
Mast (stationary) |
Tripod with extension arm (Mobil) |
Tripod (Mobil) |
||
|
Dimensions |
140 x 100 x 200 cm |
Variable: Recommended installation width is 1 m |
|||
|
Component heights |
Adjustable; recommended heights according to the WMO: anemometer 2 m, rain gauge 1 m |
||||
|
Weight |
~35 kg |
~25 kg |
|||
|
Housing |
Protection Class IP68 |
||||
|
Wind Speed Sensor |
|||||
|
Measurement range |
0 … 50 m/s |
||||
|
Measurement accuracy |
±3 % |
||||
|
Wind direction sensor |
|||||
|
Measurement range |
0° … 359° |
||||
|
Resolution |
ca. 0.4° |
||||
|
Measurement Accuracy |
± 2 % |
||||
|
Humidity Sensor |
|||||
|
Measurement range |
0 … 100 % rF |
||||
|
Measurement accuracy |
±3.5 % rH |
||||
|
Air Temperature Sensor |
|||||
|
Measurement range |
-40 … 60 °C |
||||
|
Measurement accuracy |
±0.5 °C |
||||
|
Global Radiation Sensor |
|||||
|
Measurement range |
0 ... 2000 W/m² |
||||
|
Sensitivity |
20 mV pro 1000 W/m² |
||||
|
Measurement accuracy |
7 % |
||||
|
Rain gauge |
|||||
|
Funnel Collection Area |
214 cm2 |
||||
|
Water volume per pulse |
4.28 ml |
||||
|
Tipping tray |
calibrated to metric standards (0.2 mm) |
||||
|
Measurement accuracy |
± 3 % |
||||
|
Position |
separately |
on extension arm |
separately |
||
|
UGT-Data logger |
|||||
|
Measurement interval |
10 seconds to 4 hours; statistics can be aggregated |
||||
|
Solar Power Supply |
|||||
|
Solar panel |
30 W |
||||
|
Backup battery |
12 V / 36 Ah |
||||
|
Backup battery position |
control cabinet |
separately |
|||
